Technical Specifications

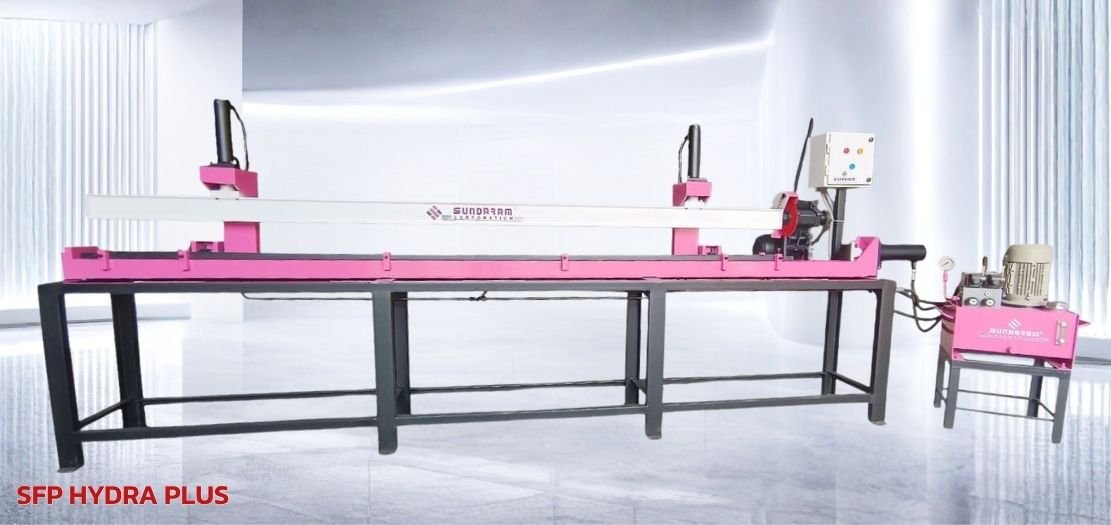

| PARTICULAR | SFP HYDRA | SFP HYDRA EXCEL | SFP HYDRA PLUS | SFP HYDRA PRIME | SFP AERO-HYDRA EXCEL | SFP AERO-HYDRA PLUS | SFP AERO-HYDRA PRIME | SFP ONLINE PLUS | SFP ONLINE PRIME |
|---|---|---|---|---|---|---|---|---|---|
| JOB HEIGHT | 3 INCH | 4 INCH | 4 INCH | 4 INCH | 4 INCH | 4 INCH | 4 INCH | 2 INCH | 2 INCH |
| JOB WIDTH | 4 INCH | 6 INCH | 6 INCH | 6 INCH | 6 INCH | 6 INCH | 6 INCH | 6 INCH | 6 INCH |
| JOB LENGTH | 8 FT | 10 FT | 10 FT | 10 FT | 10 FT | 10 FT | 10 FT | 10 FT | 10 FT |
| CLAMPING WAY | TOP | TOP/BACK | TOP/BACK | TOP/BACK | TOP/BACK | TOP/BACK | TOP/BACK | AUTOMATIC | AUTOMATIC |
| CLAMPING TYPE | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC | PNEUMATIC | PNEUMATIC | PNEUMATIC | PNEUMATIC | PNEUMATIC |
| PRESSING TYPE | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC |
| END SIZE CUTTER | N/A | N/A | MANUAL CUTTER | PNEUMATIC CUTTER | N/A | MANUAL CUTTER | PNEUMATIC CUTTER | PNEUMATIC CUTTER | PNEUMATIC CUTTER |
| POWER | 1 H.P. | 2 H.P. | 2 H.P. | 3 H.P. | 2 H.P. | 2 H.P. | 3 H.P. | 2 H.P. | 2 H.P. |
| OPERATING TYPE | HAND LEVER | HAND LEVER | HAND LEVER | HAND LEVER | HAND LEVER | HAND LEVER | HAND LEVER | TOUCH | TOUCH |
| FEEDING TYPE | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | AUTO |

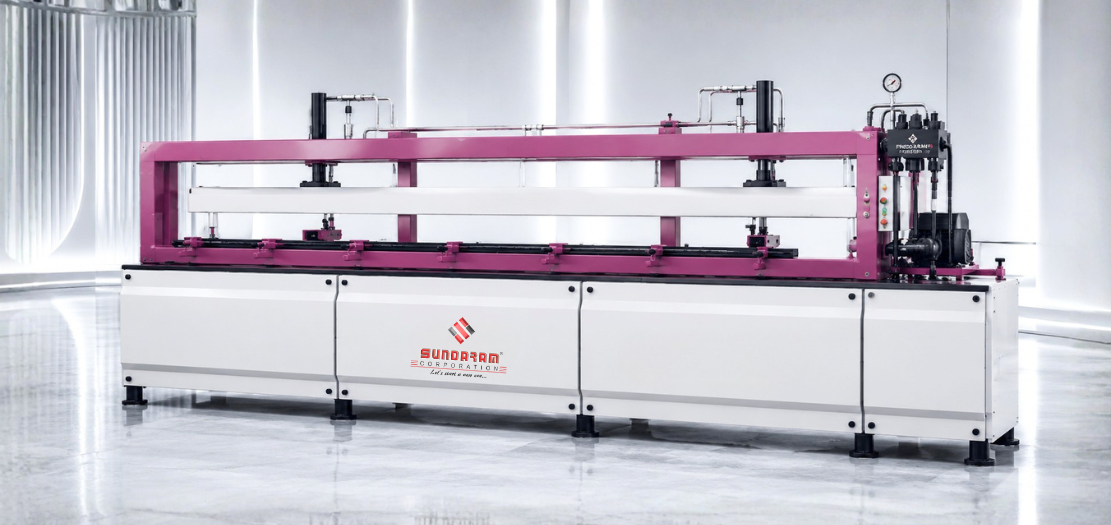

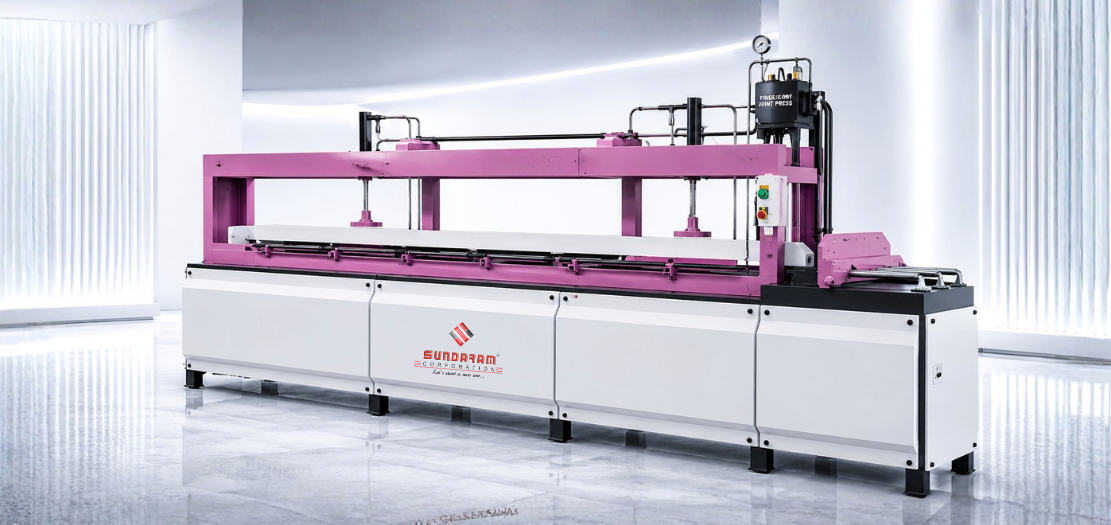

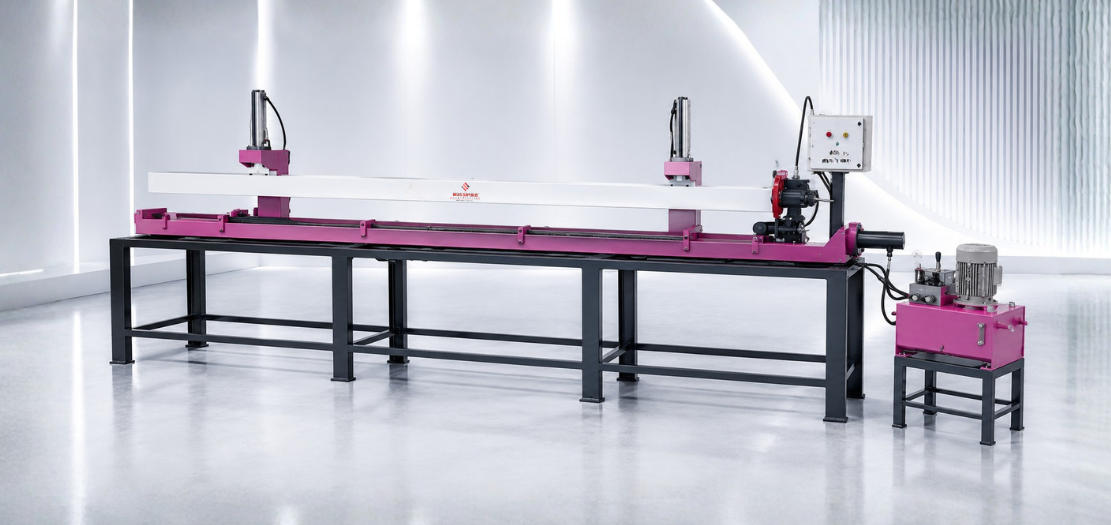

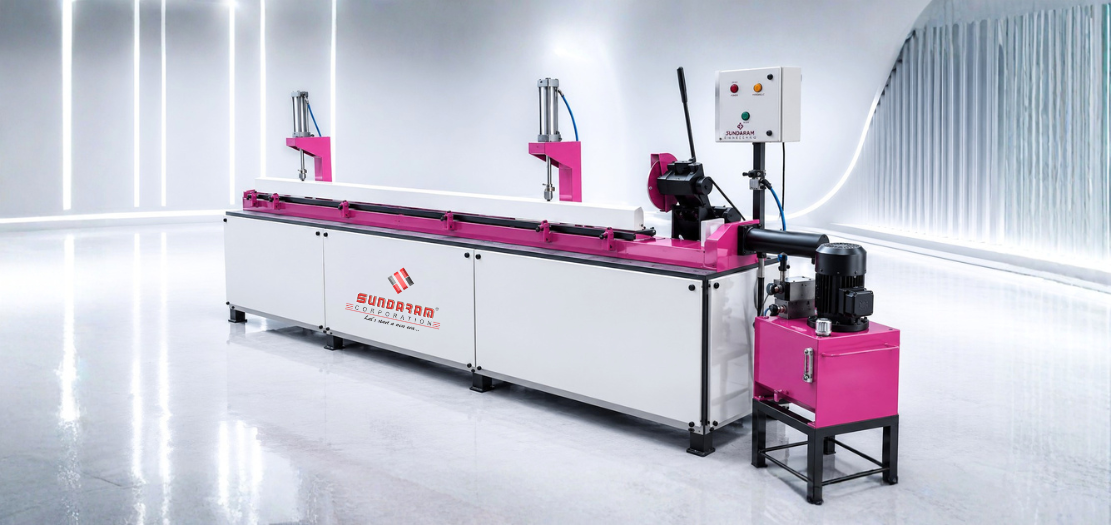

Finger Joint Press Machine - Overview
Built with a heavy-duty steel body and engineered for continuous industrial use, this machine delivers consistent joint accuracy and superior bonding quality. The machine firmly clamps the wood pieces, aligns the finger profiles, applies uniform pressure, and ensures a reliable joint that enhances the load-bearing capacity of the final product.

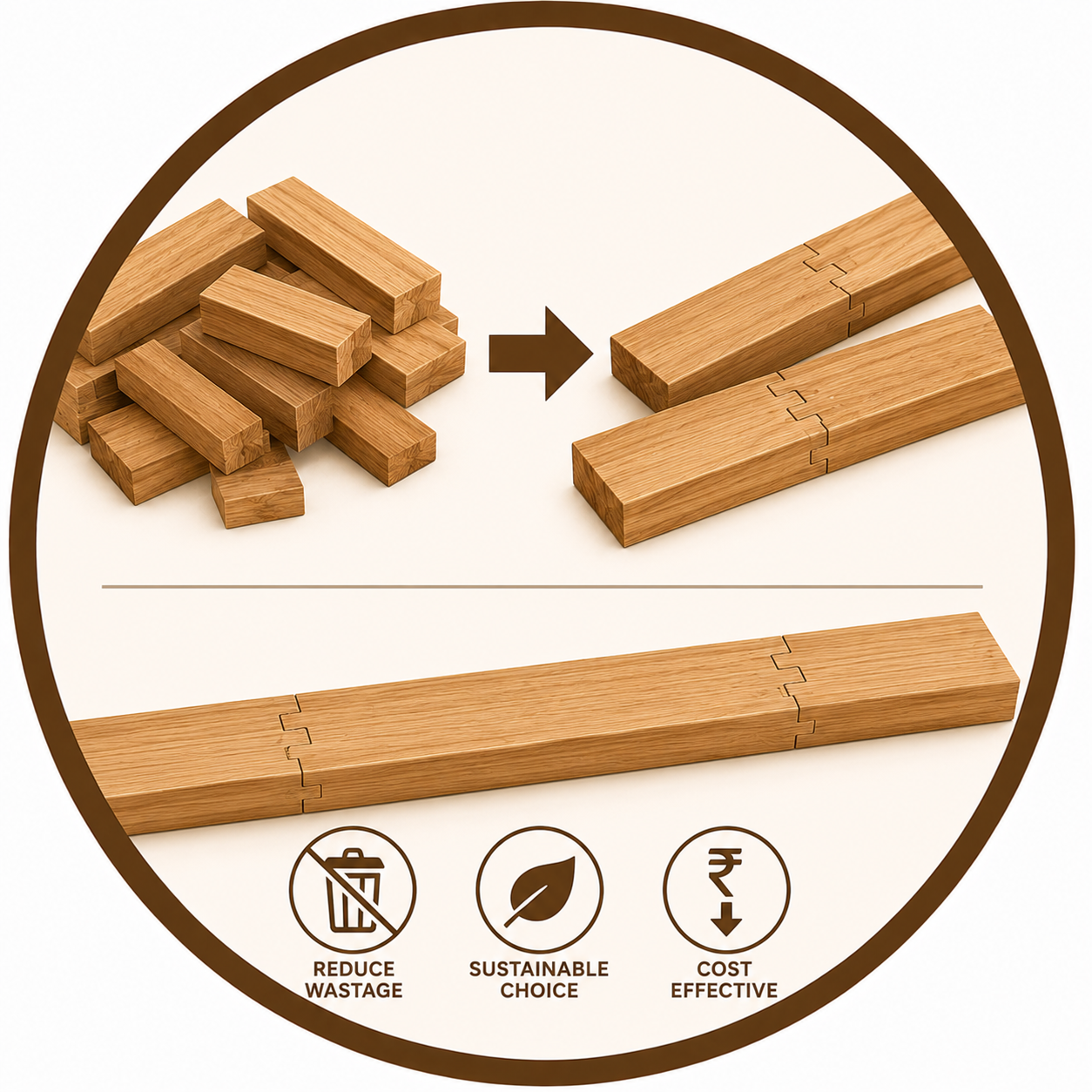

Equipped with high-quality hydraulic/pneumatic systems (based on model), precision guide mechanisms, and durable pressing components, the Finger Joint Machine is designed for long service life, low maintenance, and smooth operation. It helps manufacturers improve raw material utilisation by joining short wood pieces into usable, extended-length wooden products with high structural integrity.
Key Technical Features
Versatile Manufacturing Solutions
Our Finger Joint Press Machine is engineered for extreme versatility, providing high-precision solutions across a diverse range of industrial sectors from specialized manufacturing to large-scale production.
Core Applications
Optimized for diverse industrial uses, from furniture components to structural panels.

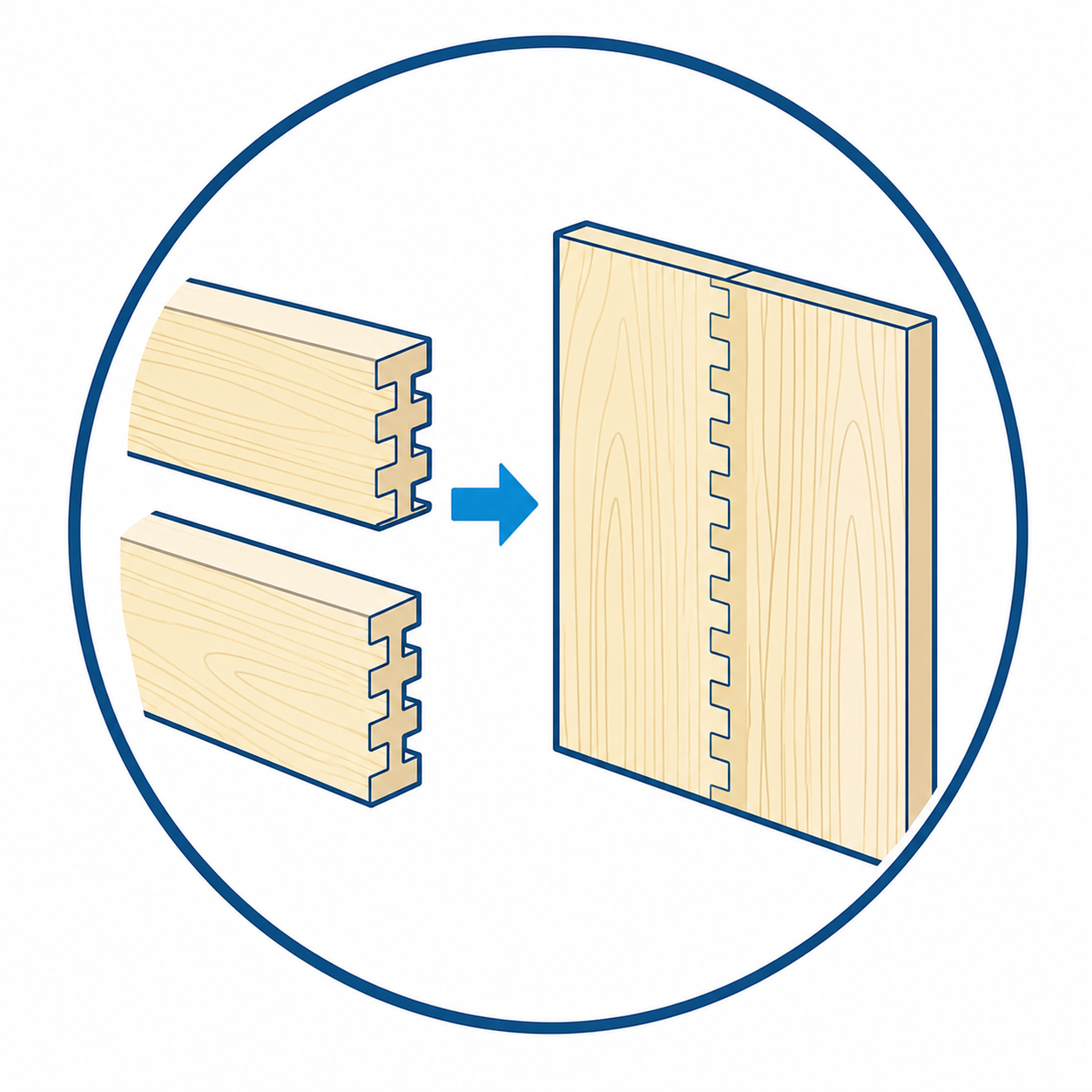

Finger Joint Boards / Panels
Door Frames & Window Frames
Furniture Components
Extended-Length Wooden Members
Solid Wood Panel
