Technical Specifications

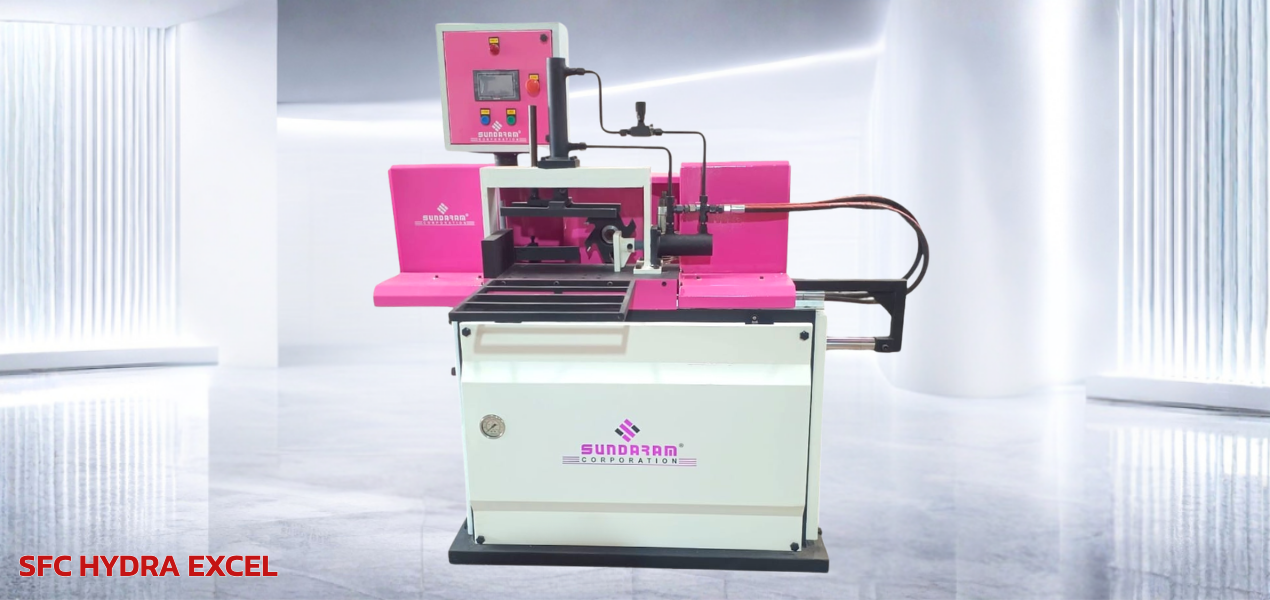

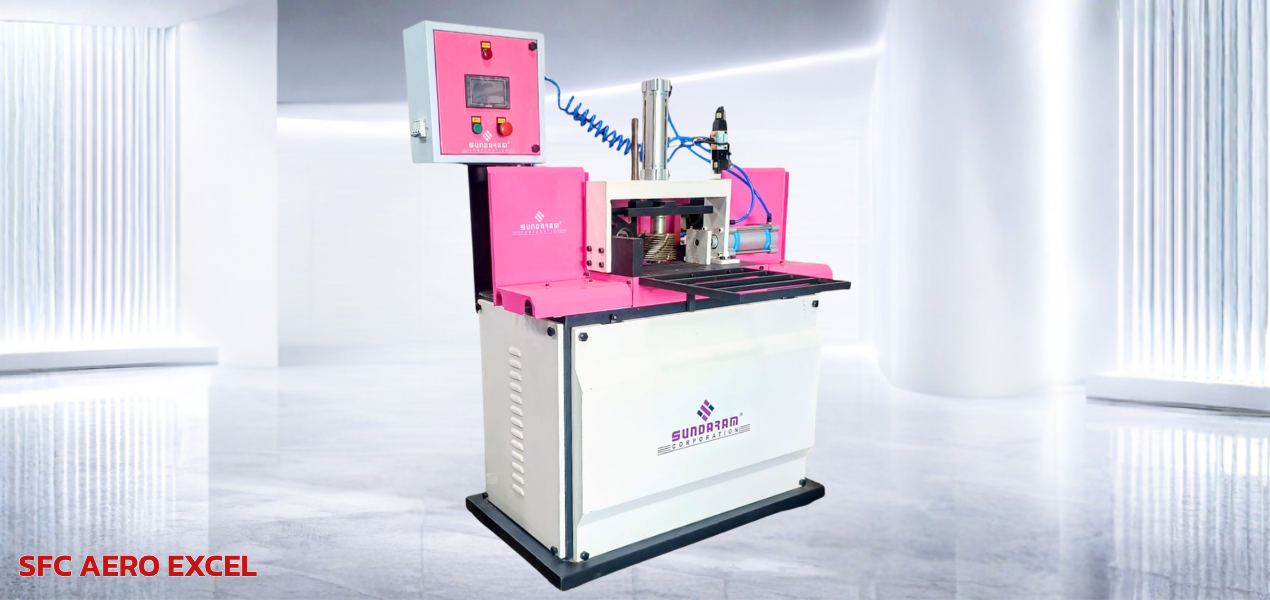

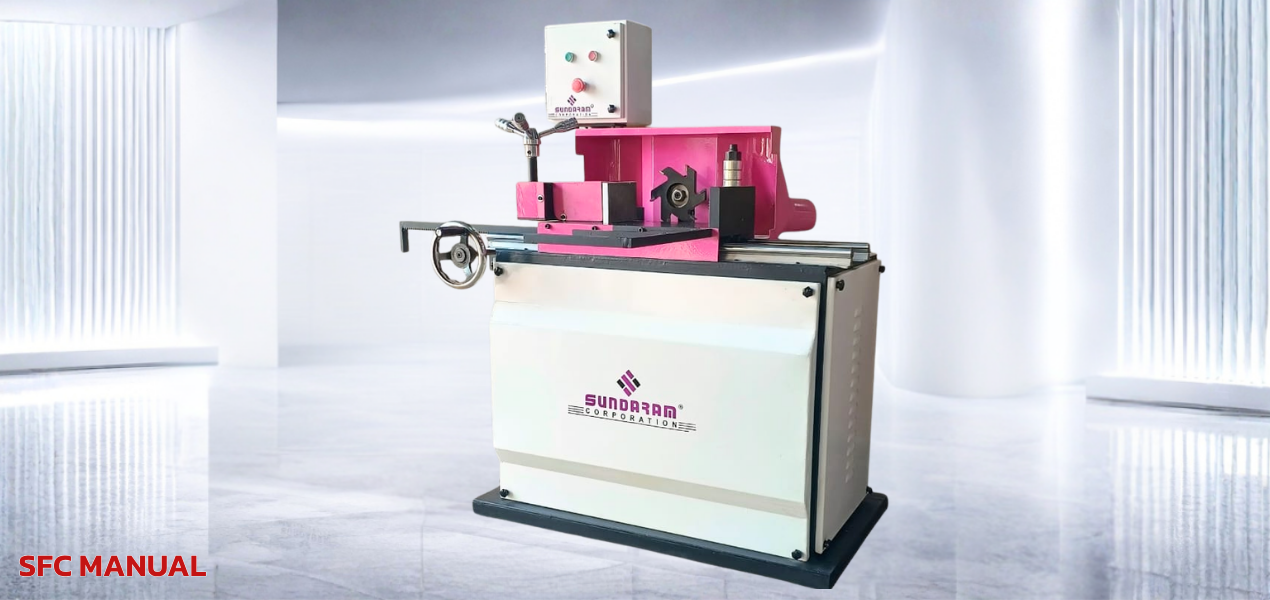

| PARTICULAR | SFC 5.1.0 | SFC AERO | SFC AERO EXCEL | SFC AERO PLUS | SFC AERO PRIME | SFC HYDRA | SFC HYDRA EXCEL |
|---|---|---|---|---|---|---|---|
| CUTTING HEIGHT | 6 INCH | 4 INCH | 6 INCH | 6 INCH | 6 INCH | 6 INCH | 6 INCH |
| CUTTING WIDTH | 12 INCH | 12 INCH | 12 INCH | 24 INCH | 24 INCH | 12 INCH | 12 INCH |
| CLAMP TYPE | MANUAL | MANUAL / PNEUMATIC | PNEUMATIC | PNEUMATIC | PNEUMATIC | HYDROMATIC | HYDROMATIC |
| OPERATING TYPE | HAND OPERATED | BUTTON PANEL | TOUCH PANEL | TOUCH PANEL | TOUCH PANEL | BUTTON PANEL | TOUCH PANEL |
| MOTOR FACING | 1 H.P. | 1 H.P. | 2 H.P. | 2 H.P. | 2 H.P. | 2 H.P. | 2 H.P. |
| MOTOR SHAPING | 5 H.P. | 5 H.P. | 7.5 H.P. | 7.5 H.P. | 10 H.P. | 7.5 H.P. | 10 H.P. |
| MOTOR AUTO RUN | N/A | 1 H.P. GEARBOX | 1 H.P. GEARBOX | 1 H.P. GEARBOX | 1 H.P. GEARBOX + VFD | 1 H.P. HYDRA PISTON | 1 H.P. HYDRA PISTON |
| EXTRA FEATURES | - | - | - | - | VARIABLE SPEED | VARIABLE SPEED | VARIABLE SPEED |

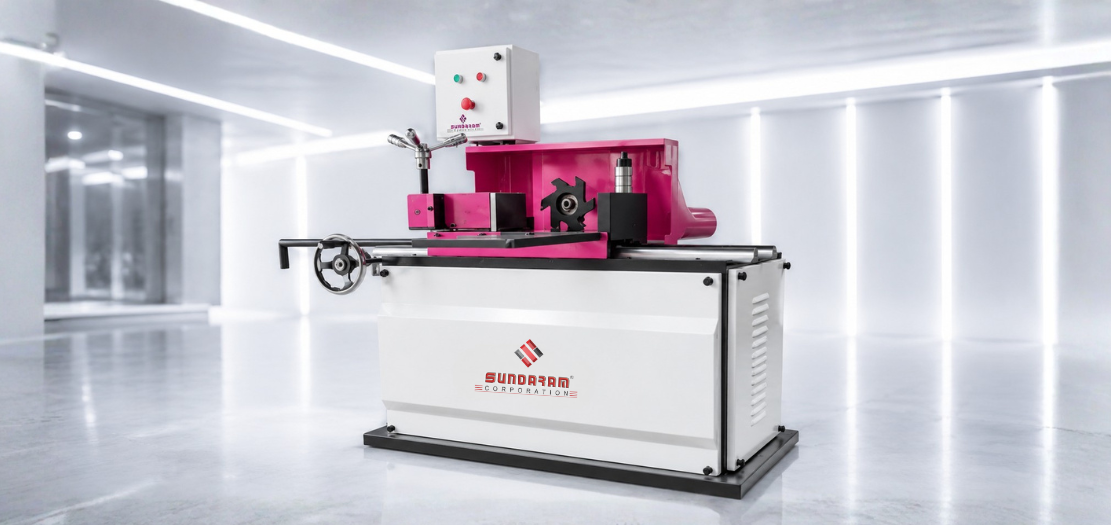

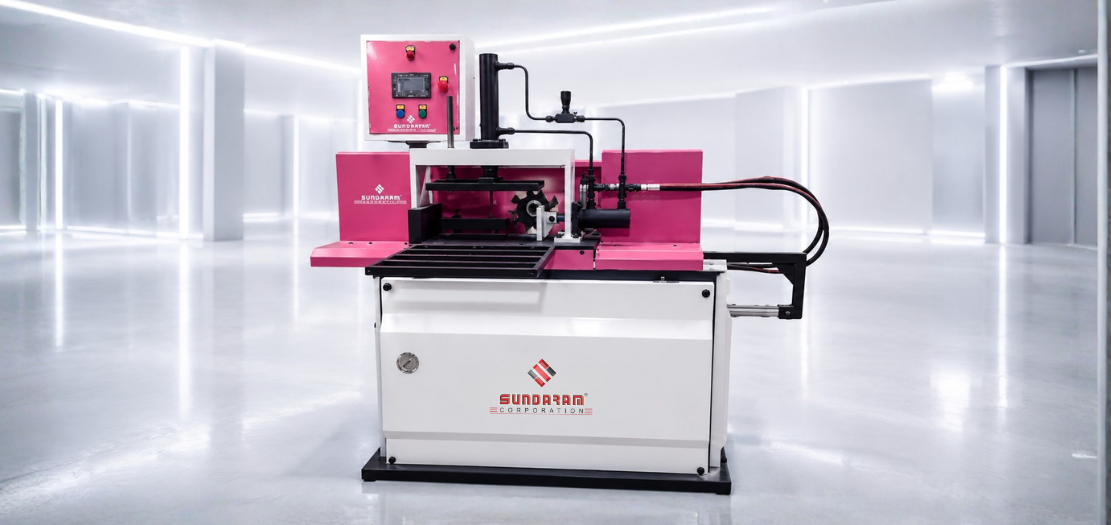

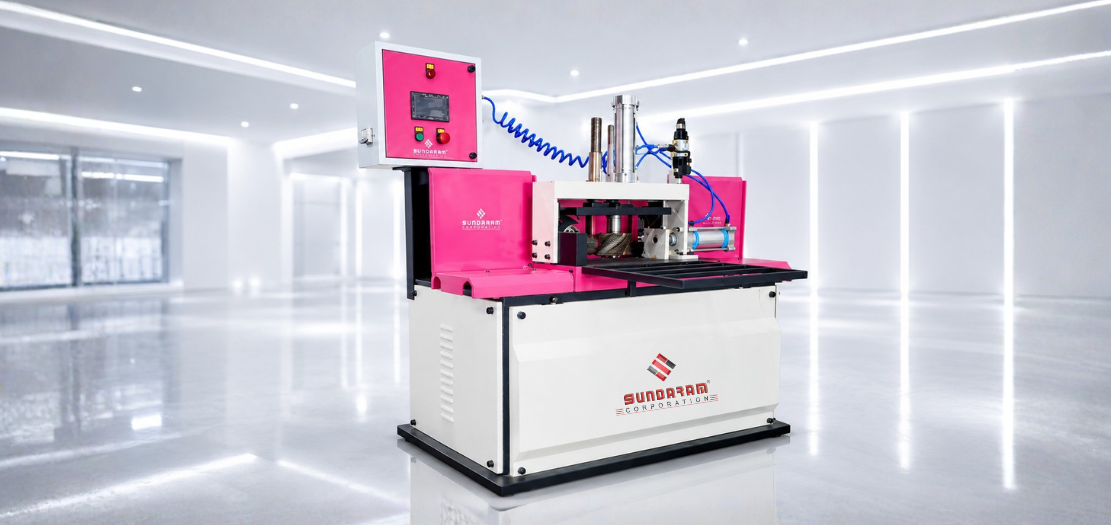

Finger Cutting Machine - Overview
Built for high-speed and stable performance, this machine ensures smooth cutting, perfect alignment, and strong bonding strength when assembling wood pieces for extended-length strips, frames, and furniture components.
Manufactured with a rigid structure and vibration-free mechanism, the machine delivers consistent cutting depth and pitch in every cycle.
Its advanced cutter head system produces clean and sharp finger profiles, improving the durability and load-bearing capacity of the final joint.
With smooth sliding arrangements, operator-friendly controls, and high-quality tooling, this machine ensures accuracy even during heavy-duty, continuous production.

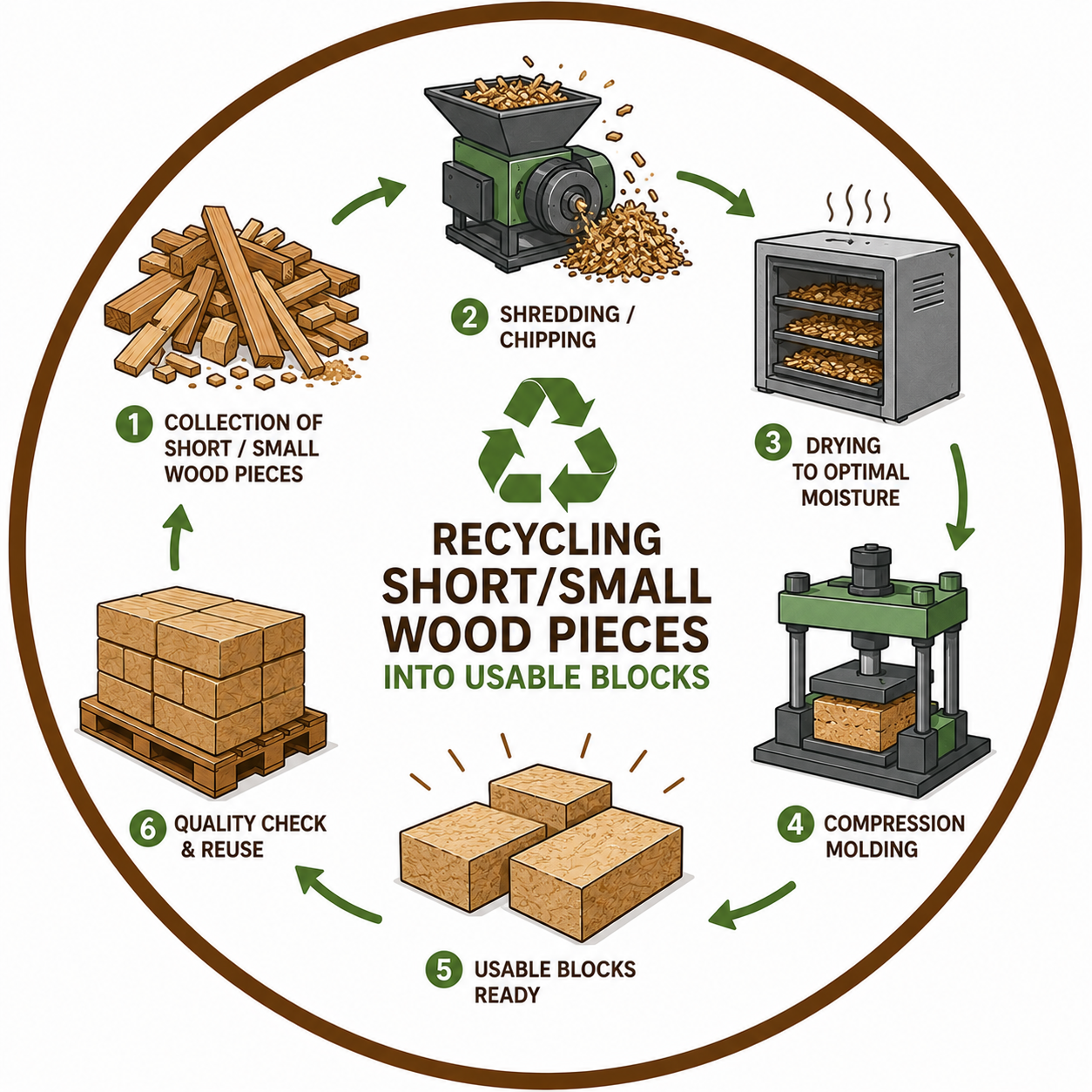

Ideal for solid wood joinery, panel construction, frame manufacturing, and recycling of short wood pieces, the Finger Cutting Machine significantly increases material utilization, reduces wastage, and enhances overall production efficiency.
Designed with safety features, durable components, and minimal maintenance requirements, it is a reliable solution for wood processing units looking for long-term performance and precision.
Key Technical Features
Versatile Manufacturing Solutions
Our Finger Cutting Machine is engineered for extreme versatility, providing high-precision solutions across a diverse range of industrial sectors from specialized manufacturing to large-scale production.
Core Applications
Optimized for diverse industrial uses, from furniture components to structural panels.
Finger Joint Blocks
Furniture Components
Extended-Length Wooden Panels

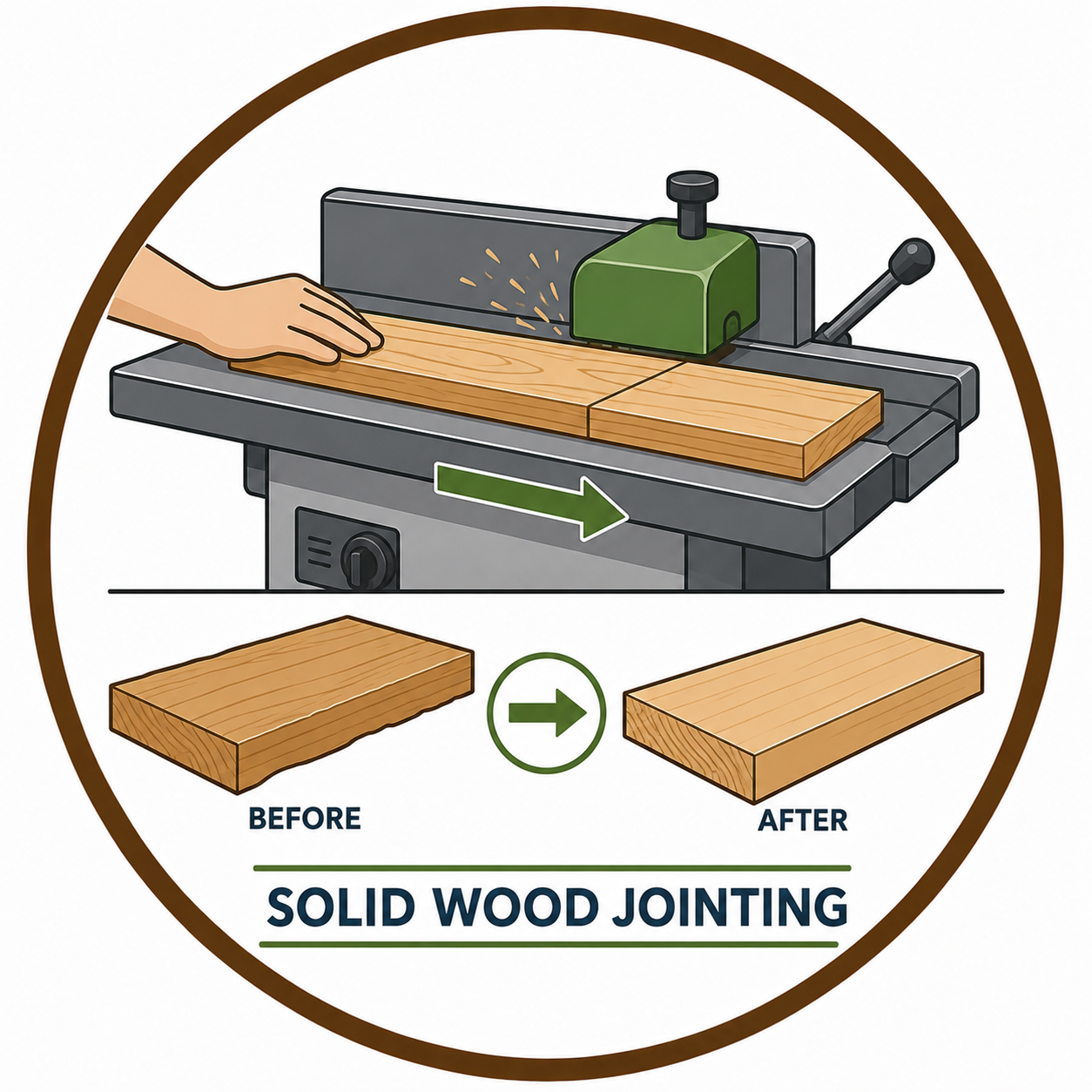

Solid Wood Jointing

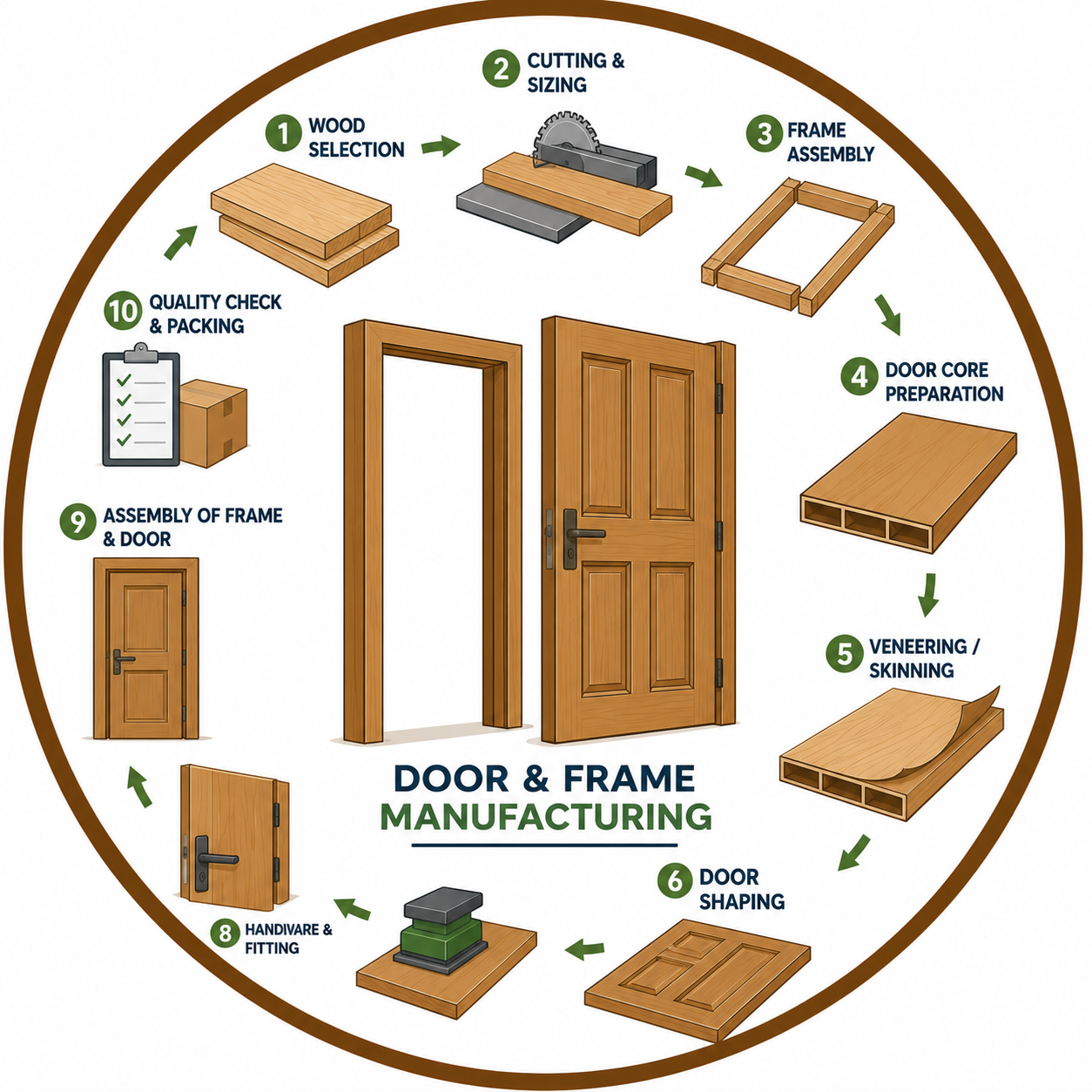

Door & Frame Manufacturing
